Auto Discharge Centrifugal Concentrator

Centrifugal Gold Concentrator

Descriptions

Name:Mineral separator gravity separator gold centrifugal concentrator knelson concentrator

Application:Fine gold

Feeding size:-5mm,best feeding size:-1mm.

Capacity:the biggest model is 100tph.

Application shows that the recovery ratio can be as high as 99%, and the concentrating ratio is up to 1,000 times.When feeding size -0. 074mm in recovering the natural gold,The gold is up to 98%, For 0.04mm in particle size, the gold recovery can achieve 97%.

Manufacturer:JiangXi Gandong Mining Equipment Machinery Manufacturer//JiangXi  Well-tech International Mining Equipment

Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus,It's good for separation free gold fine gold,there is  Auto Discharge Centrifugal Concentrator and Manual Discharge Centrifugal Concentrator two type,Normal now we process Auto Discharge type Centrifugal Concentrator,match with variable frequency motor,and inverter.all step just need press button on control cabinet.

Gold Centrifugal concentrator how to work?//How does a gold concentrator work?

Use the principle of centrifuge is used to enhance the gravity of feed particles,so accoding to minerals sepecific gravity diffenrece for achieve separation affect.

The key components is a cone shaped "concentrate" bowl, the concentrate bolw is rotated at high speed by a variable frequency motor and a pressurized water jacket which peripheral the bowl. Normally, After vibrating screen or trommel screen,or ball mill be closed-circuit grinding system materail can feed to gold centrifugal concentrator for separation fine gold.It not only can recovery alluvial gold placer gold ,but also suitable for stone gold rock gold plant.

The feed slurry contacts the container plate,Because rotation, slurry thrust outward. The outer extremities of the concentrate bowl house a series of ribs and between each pair of ribs is a groove. During operation the lighter material flows upward,

Over the grooves and heavy mineral particles (usually of economic value minerals) Become trapped within them. Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles,so heavy mineral particles can be efficiently separation.

Centrifugal gold concentrators operate by gravity and G-force, allowing the separation of heavier particles, including fine gold and other heavy metals. When 50 to 60g of material is introduced into the concentrate bowl, the gravity field allows the recovery of 0.074mm fine gold.

Features

◆ Automatic operation and automatic discharging.

◆ High concentrating ratio and high recovery ratio.

◆ Steady recovery performance.

◆ Environmentally friendly(no need add chemical).

◆ Low water and electricity requirements.

◆ Low production costs, durable wear parts, minimal maintenance requirements.

◆ Compact design requiring less space, easy merged into the existing mining processing.

◆ Equipped with frequency conversion motor and frequency converter.

Automatic centrifugal concentrator

In order to solve can't automatic dishcarge problem and waste manpower and shortcomings of older model products, our company developed automatic discharging system, now our new gold centrifugal concentrators can be fully automated. No longer needed stop the concentrator and wash concentrates by hand, only push start and stop button on the antomatic control system to complete all works. Because all processing is closed operation, So it can avoid man-made concentrate loss. Besides, our Knelson concentrator adopt soft materials at shock-absorbing places, it can effectually decrease negative effects issued from the vibration, and we process centrifugal gold concentrator with 4 heavy duty foot for support machine body, so increase the working lifetime.

Centrifugal concentrator Technical Specifications

Knelson concentrator Processing details

Inner material: stainless steel 316L, polyurethane, SKF bearing

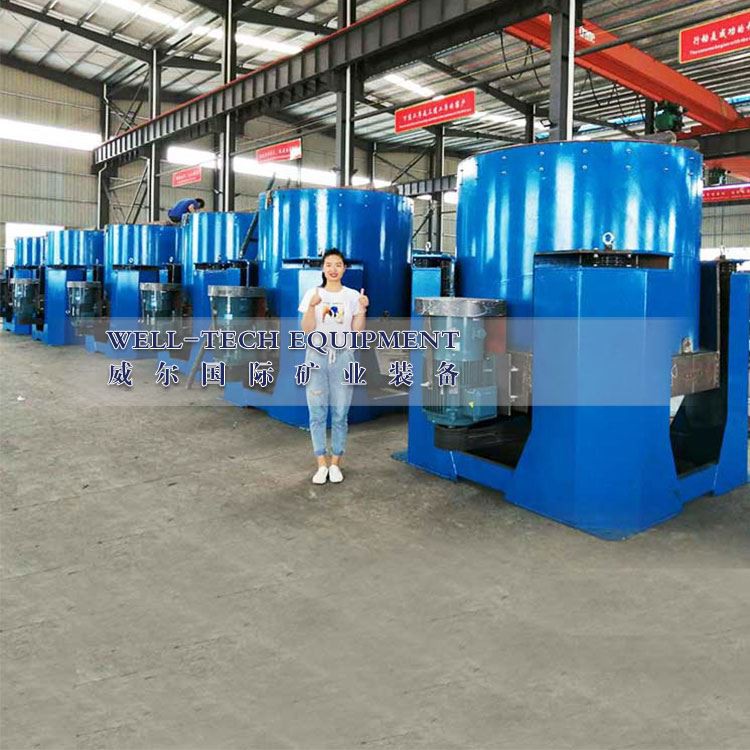

Gold centrifugal concentrator

Gold concentrator PLC control cabinet(Option)

Applications:

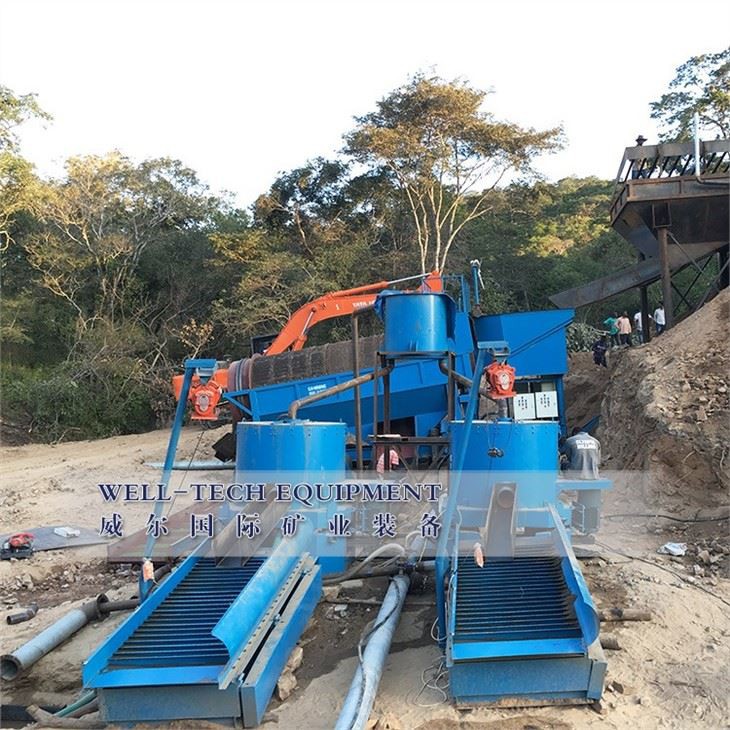

Alluvial gold plant in Russia

                                                     Falcon concentrator in Laos

Mining concentrator equipment

Gravity gold concentrator

                                             Gold concentrator separator

About JiangXi Well-tech International Mining Equipment Co.,Ltd:

Jiangxi Well-tech International Mining Equipment Co.,Ltd is the largest manufacturer and exporter of gravity separator equipment in China,Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team. We are moving towards company collectivization to achieve.shaking table,spiral concentrator,jig machine,centrifugal concentrator,vibrating sluice box,trommel,rotary scrubber etc wash plant machine is our advantage products,We have rich experience of recovery gold,diamond,tantalum niobium,chrome,tin,tungsten,zircon,ilmenite etc,include alluvial and stone type.We can provide design flowchart, processing equipment, engineer installing guide and debugging at worksite.Now our products have been exported to over 60 countries,such as America,Australia,Russia,Peru,Ghana,PNG,Zimbabwe,Brazil, Turkey,Congo, Morocco, India, Indonesia, Malaysia, Philippines,Zambia etc.

Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.

FAQ:
Q:If the concentrate can automatic discharge.
A;Yes,centrifugal concentrator match with variable frequency motor,and inverter.all step just need press button on control cabinet.
Q: If i need the complete mineral processing line. Can you help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advice as long as you need. There is a rich experienced engineers team of us, these 12 engineers always fly out of China to install, debugging our equipments on site and trainning the buyer's staff.
Q: How long is the guarantee of your equipments? Does your company supply the spare parts?
A: The warranty period of is one year, if break during this guarantee period, we need to replace new one for you AT NO COST. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: Do you cut the steel plate by hand?
A: No, we use the plasma cutting machine to cut all materials which is controlled by computer. It's very accurate.

--- PRE-SALE SERVICE

--- 1.Based on clients' request and budget, our experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to us for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients' demands.


--- AFTER-SALE SERVICE -

-- 1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:


--- ONE STOP SOLUTION

-- 1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

Why Choose Us?

We are manufacturer, not trade company.

-Quality: Guarantee

-Delivery: On Time

-Communication: In Time

-After-Sales Service: Excellent

-Engineer Team: Professional & more than 20 years experience on site

-Price: Competitive

Welcome you visit our factory when you are free, we will arrange our driver to pick you up from Airport for free and book hotel for you in advance. Well-Tech International Mining Equipment Co.,Ltd. Has more than 200 workers and 7pcs big workshop which takes more than 30000m2 floor. One office building and one ancillary building, factory environment is very good. We have tennis court, basketball court, table tennis course etc entertainment .

if you need high quality,small vibrating amplitude gold centrifugal concentrator,please Contact us any time,please send us inquiry as below,we will reply you within 24hours.
